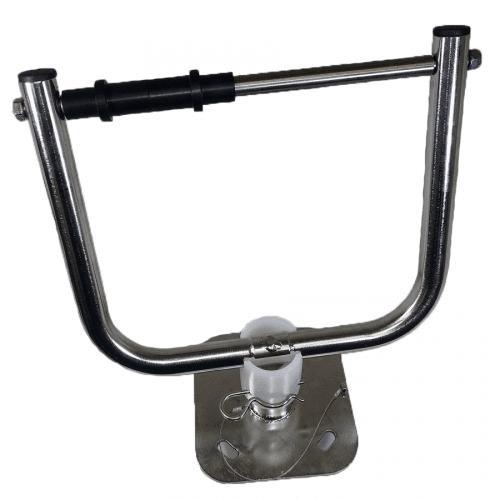

Wheeleez™ Caster with 30cm PU wheel (Swivel Caster with ‘Rigid’ Caster option)
$14.44
$19.06

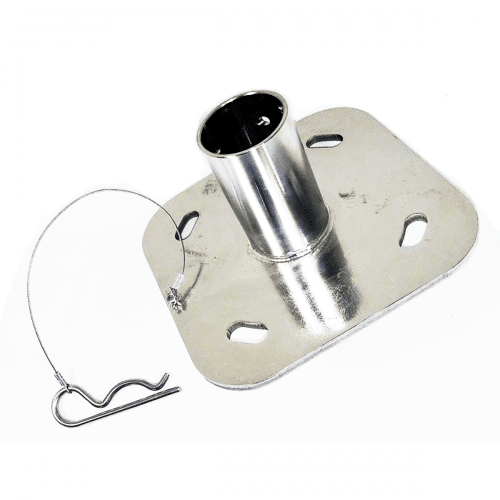

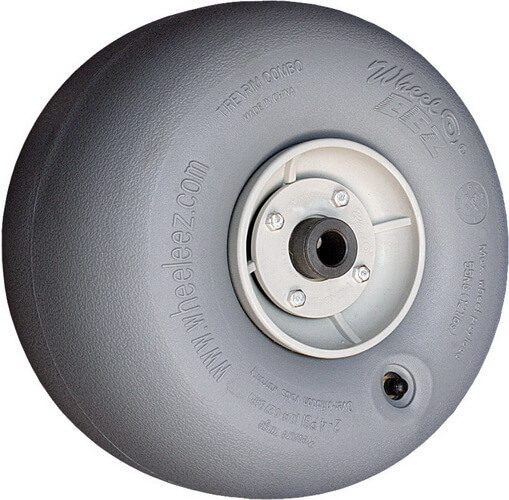

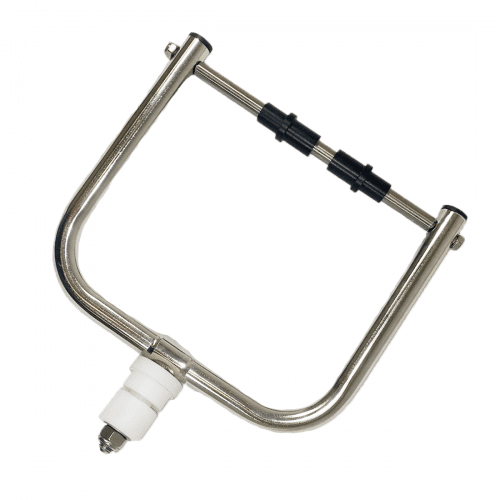

Description Complete Caster Assembly for Wheeleez™ 30cm PU Balloon Wheel. Includes: Mounting Plate with Lanyard and Hitch Pin attached Caster Fork Assembly 1x Wheeleez™ 30cm PU Balloon Wheel Specifications: Caster Fork Electro-polished, 316 Marine Grade Stainless Steel construction. Outside fork width: 29cm, Fork height: 25cm, wall thickness: 2mm Bushing diameter: 35 x 40mm L Stem Bolt: 70mm L x 12mm dia. Caster Locking Sleeve: Locks swivel Base Plate Electro-polished, 316 Marine Grade Stainless Steel construction. Measures: 14 L x 14cm square and 5mm thick Bolt hole pattern: 8 x 8cm square Bolt holes: 2 L x 1cm W Stainless Steel Hitch Pin with Lanyard included Maximum Payload: 55 kg Base Plate mounting hardware not included example of drawing req. but with our bolt hole pattern measurements Wheeleez™ Caster Parts Wheeleez™ Caster assembly Instruction SheetYou can also buy parts of the caster… Caster Mounting Plate with Lanyard & Pin $149.99 Add to cart Details Quick View Wheeleez™ Caster Fork Assembly for 30cm PU wheel $149.99 Add to cart Details Quick View Caster Locking Sleeve $34.99 Add to cart Details Quick View
