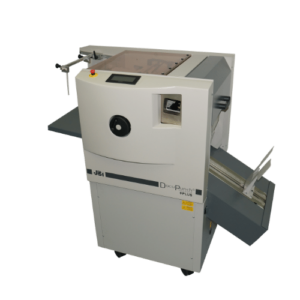

Description JBI PUNCH & BIND EQUIPMENT DocuPunch PLUS The DocuPunch PLUS is a versatile automatic punching machine designed for medium size runs involving multiple materials ranging from 80 to 250 gsm including acetates or plastic covers and diverse punching patterns including thumb cuts with maximum punched edge of 330mm (13″). It can also punch pre-collated tabbed sheets and offers an output of up to 45,000 sheets (80gsm) / hour. SPECIFICATIONS Max sheet size: 330 (BE) x 300mm (BExBinding edge) Min sheet size: 138 (BE) x 138mm (BE x Binding edge) Sheet weight: From 70 to 250gsm Feeder & reception tray capacity: 250mm (5 reams = 2500 sheets) Cycle speed: 50, 60 and 75 cycles/minute Punch speed: Up to 45,000 (80gsm) sheets / hr Byte thickness: Selectable from 0.4mm to 1.00mm Tooling: Interchangeable with retractable pins Tool change over: 2 minutes; integral storage space for 3 dies Control panel: Touch screen Format set up time: Via touch screen and hand wheel in less than 5 minutes Power: 220/240V (50Hz) 1ph-110/120V (60Hz) 1ph Machine dimensions: (LxWxH) 1280 x 710 x 1175mm Net weight: 190kg Paper Punching, Cutting and Document Binding Machines JAMES BURN offers a comprehensive range of paper punching & cutting machines as well as document binding machines that are suitable for various requirements in intensive production operations, on Demand punching and binding operations or office and copy finishing environment. Whether it is for big volumes on a regular basis or smaller runs on demand or in office & copy finishing environment, there will always be a cost-effective solution within the range of paper or cardboard punching machines, tab & index cutters and document binding machines designed, produced and sold by JAMES BURN.
