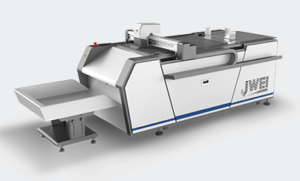

JWEI LST-0806 B2 DIGITAL DIE CUTTER
$56.75
$71.5
Description The LST - 806 cuts, kiss cuts and scores a range of substrates including paper, laminates, adhesives and synthetic stocks up to 800 x 600mm (31” x 23”). Integrated with cutting tools, creasing wheel tool, plotting pen and CCD registration system, LST - 806 digitally cut labels of any shape, folding cartons of any structure. Designed for short run on-demand production, the LST-0806 can also be automated by QR code recognition function for auto retrieving cutting files. Takes only 15-70 seconds to finish a A3-B2 sheet (depends on complexity of shapes). Applications include: Cardboard, Stickers, PVC, Solid grey board, corrugated board, foam board ≤6mm etc. FEATURES No physical dies required. Affordable, versatile solution for short-run production, Sample making, Prototyping designs (irregular shapes) Automated material feeding system Easy job preparation & set-up CCD camera QR Code automatic registration system Compact cutting heads SPECIFICATIONS: Function: Through cutting/Kiss cutting/Creasing/Plotting Max Speed: 1200mm/s Max Cutting Thickness: ≤6.0mm Cutting Media: Card paper, Coated paper, Adhesive PVC, Plastic boards, PVC boards, PU, Cardboard, Fibrous boards, Rubber Sheets, marking films and corrugated board etc. Blades, Wheel: Special tungsten carbide blade/Creasing tool, electric oscillating tool. Media feeding Method:Vacuum suction Repeat Precision: ≤0.1mm Interface: Ethernet port File Format: HP-GL compatible format (PLT), DXF, XML, CF2 Operational Panel: Liquid crystal display panel with touch panel Transmission system: Imported servo driver; synchronous belt Power Supply: AC 220V /- 10%, 50HZ / 60HZ Power: 4KW Working Environment: 10 to 35 deg.C Effective Cutting Area: 800mm x 600mm Dimensions: 3200mm x 1100mm x 1100mm
Die Cutting
