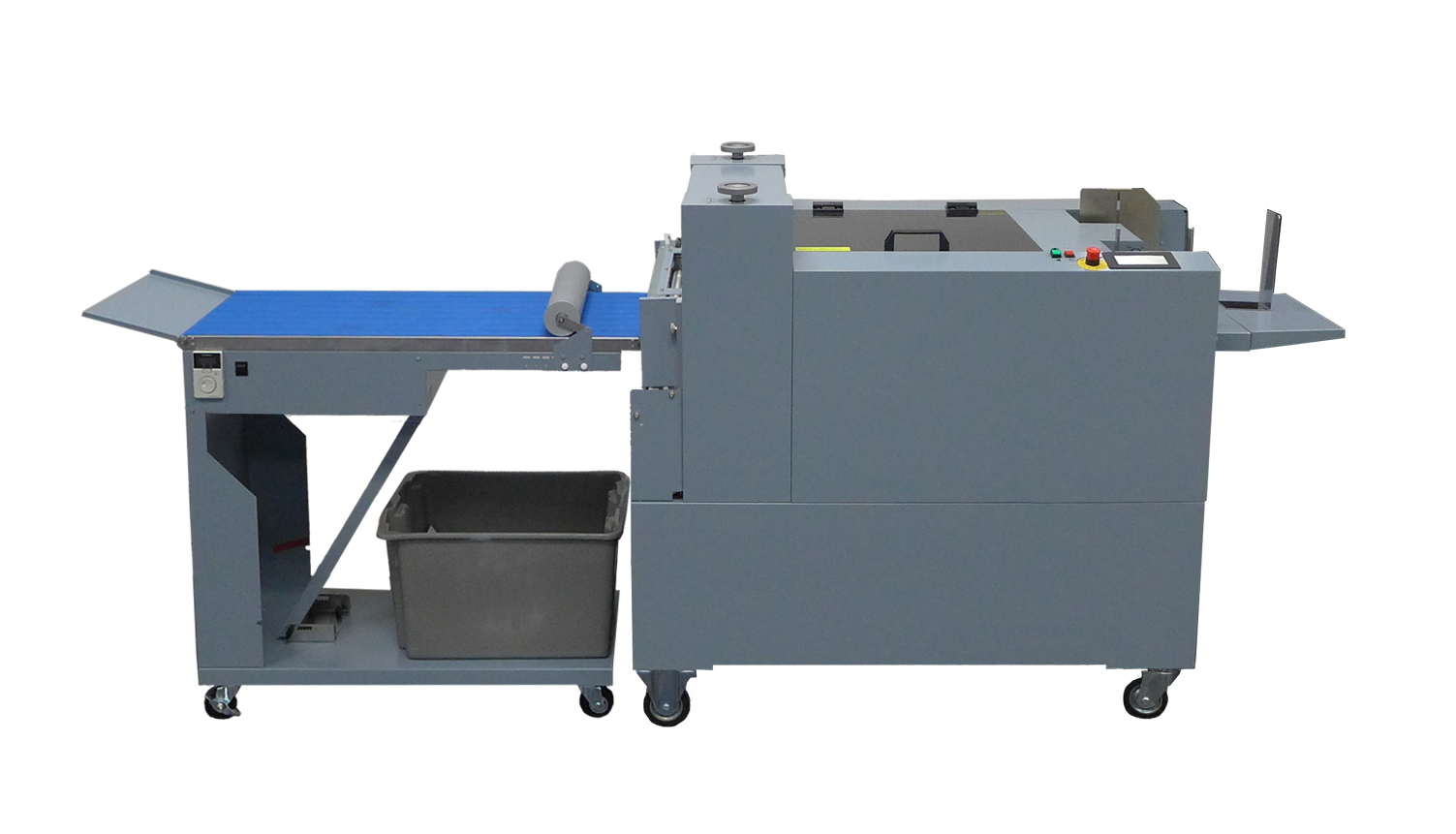

Description The high-speed UD-310 Rotary Die Cutter delivers print marketing applications in distinctive shapes and sizes to help you stand out from the competition. Processing up to 4,000 sheets per hour, the UD-310 utilizes a magnetic cylinder and interchangeable flexible dies that affix to it to process paper, laminates, adhesives and synthetic stocks. Suitable for mid to longer runs, the UD-310 provides high productivity and faster turnarounds. FEATURES: Easy die set up and changeover High feed capacity for non-stop productivity Separation station that deflects skeletons into waste bin X and Y sensors to read registration marks and compensate for image shifting SPECIFICATIONS: System Type Rotary magnetic cylinder die cutter Paper Size (WxL) Max. (390 x 520mm) Min. (210x297mm) Paper Thickness Max. 400 gsm Min. 106 gsm Speed 3-Step Speed Adjustment: High: 8,000 rotations - up to 4,000 sheets/hr Medium: 5,400 rotations - up to 2,700 sheets/hr Low: 2,700 rotations - up to 1,350 sheets/hr Feed System Air Suction, Top Belt Feeder Paper Loading Capacity Up to (220 mm) Weight (400 Kg)
